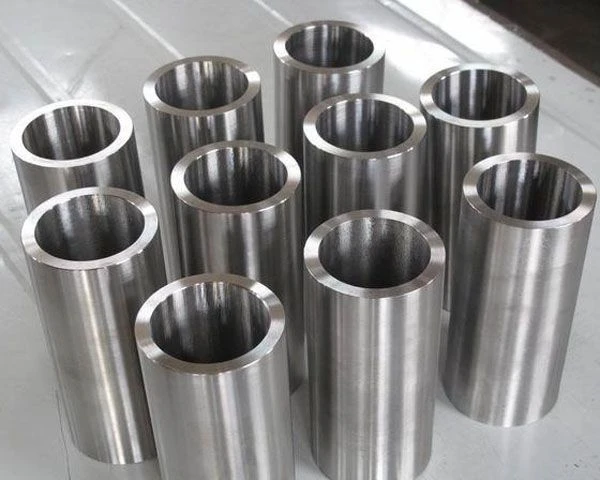

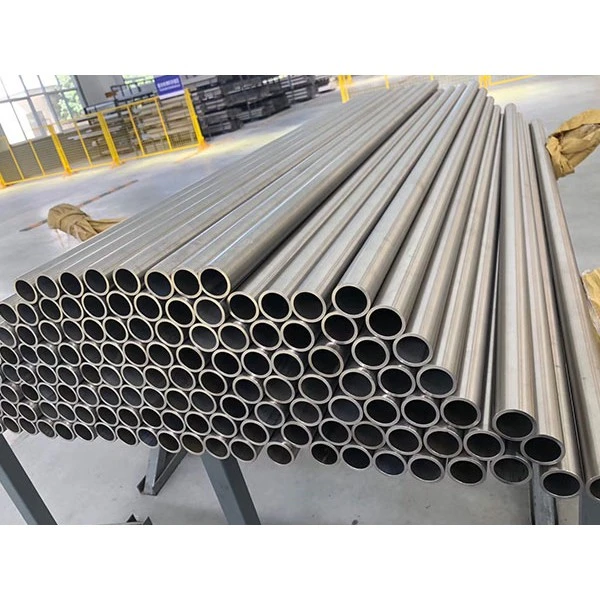

High-precision GR5 (Ti-6Al-4V) titanium alloy tubes – an exceptional balance of strength, corrosion resistance, and biocompatibility.
In aerospace, healthcare, and high-end chemicals that pursue ultimate performance and reliability, the choice of materials directly determines the success or failure of a product. Our high-precision GR5 titanium tubes are designed to meet these demanding needs. It not only inherits the inherent advantages of titanium alloy, but also maximizes its performance through a series of precise and controllable processing processes.
Material Selection: Genes of excellence derived from aerospace standards
We strictly select the internationally used GR5 (Ti-6Al-4V) alloy as the raw material, which is the "ace" titanium alloy that has been proven for decades.
Gold Composition: Precise ratio of 6% aluminum (Al) and 4% vanadium (V), achieving the perfect balance of strength and toughness through solution strengthening.
Material Assurance: All raw materials are sourced from high-quality sources, ensuring stable composition and providing a solid foundation for subsequent processing and final performance.
By choosing GR5, you are choosing the time-tested reliability and performance ceiling.
Core Performance Characteristics: Define industry benchmarks
The exceptional properties of GR5 titanium alloy pipes make them irreplaceable in several critical applications:
Exceptional strength and lightweight: With a tensile strength of over 895 MPa, far exceeding many alloy steels, and only 60% of the density of steel, it is the ultimate solution for lightweighting.
Unparalleled corrosion resistance: It has excellent resistance to chloride, acidic environments and body fluids, and its corrosion resistance is better than that of pure titanium, ensuring long-term stable service in harsh chemical environments and in the human body.
Excellent biocompatibility: Meets medical implant standards (e.g., ISO 5832-3, ASTM F136) and has no adverse reactions to human tissues, making it an ideal material for manufacturing orthopedic implants, surgical instruments, etc.
High specific strength and fatigue resistance: In the aerospace field, its high specific strength and excellent fatigue resistance are key to manufacturing aircraft hydraulic pipelines and engine components.
Precision Machining Methods: Technology forges excellence
We understand the "difficult" nature of GR5, so we use a special process tailored to overcome the challenges of work hardening, deformation and overheating.
Molding process:
Thin-walled pipes: Adopt multi-pass cold drawing/cold rolling technology to strictly control the amount of deformation in a single time, supplemented by special lubrication to ensure that the pipe size is accurate, the surface is smooth and there are no internal stress cracks.
Thick-walled/complex components: Hot extrusion/hot rolling process is used to effectively avoid oxidation and refine the grains through subsequent heat treatment to ensure material properties.
Connection Technology:
We provide high-purity argon-protected TIG welding services, and perform strict stress relief annealing after welding to ensure that the weld area performance is consistent with the base metal.
For thin-walled tubes for medical and precision instruments, advanced laser welding is used, the heat-affected zone is extremely small, and the amount of deformation is accurately controlled.
Machining:
Using cemented carbide and diamond-coated tools, the scientific cutting parameters of "low speed, large feed, and continuous cooling" are used to effectively inhibit work hardening and tool wear, and achieve high-precision turning, drilling, and cutting.
Professional surface treatment and quality assurance
Surface integrity is the last critical link in ensuring product corrosion resistance and longevity.
Standard Processing Procedure:
Pickling passivation: Use a standard HF+HNO₃ mixed solution to thoroughly remove the scale and contamination layer during the processing process, and form a dense passivation film on the surface, which greatly improves corrosion resistance.
Fine Polishing: Mechanical polishing or medical-grade electrolytic polishing can be provided according to customer needs, obtaining a mirror-like smooth surface (Ra ≤ 0.8μm), effectively reducing fluid resistance and preventing bacterial adhesion.
Sandblasting: Provides a uniform matte finish that is both aesthetically pleasing and provides an ideal base for subsequent coating treatments.
Strict quality inspection system:
Ultrasonic flaw detection (UT): 100% detection to ensure that there are no defects inside the tube body.
Eddy current detection (ET): 100% detection to accurately identify small cracks on the surface and near surface.
Dimensional and Mechanical Properties Testing: Ensure that each batch meets the design specifications and standards.
Application field
Aerospace: Aircraft hydraulic/fuel lines, engine compressor lines, fuselage structural parts.
Medical implants: artificial joints (hip, knee), bone plates, bone nails, dental implants, surgical instruments.
High-end chemicals: heat exchanger pipelines, reactor internals, pipeline systems for transporting corrosive media.
Marine engineering: desalination devices, ship pipeline systems.
By choosing our GR5 titanium alloy pipe, you are not only getting a high-quality material, but also a complete set of technical solutions from material selection, processing to testing. We are committed to working with you to push the limits and transform excellent performance into the core competencies of your products.
